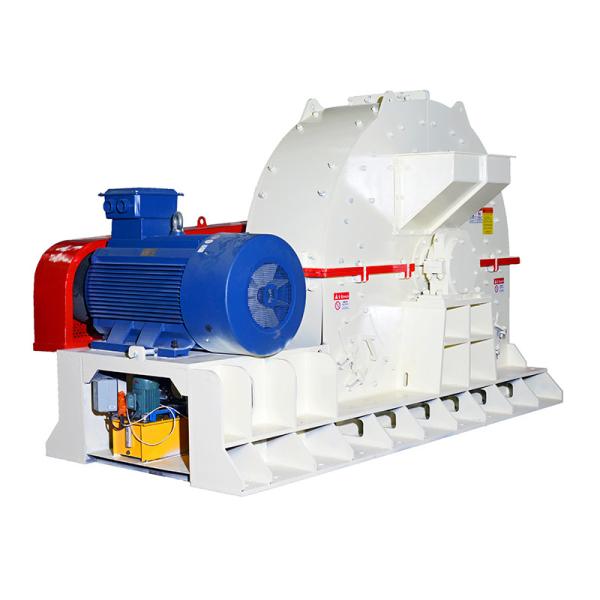

Product Description:
The Horizontal Shaft Impactor Crusher is a highly efficient and
versatile piece of equipment designed to break down tough materials
in the building materials and mining industries. With its
customizable color and automated control system, this crusher is
the perfect solution for stationary installations that require a
durable and reliable machine.
Featuring a horizontal impact crusher design, the Horizontal Shaft
Impactor Crusher delivers consistent and high-quality results every
time. Its powerful rotor and high-speed impact plates work together
to break down materials quickly and efficiently, making it an ideal
choice for crushing a variety of materials, including limestone,
concrete, and more.
Whether you're looking to break down materials for use in the
building materials industry or the mining industry, the Horizontal
Shaft Impactor Crusher is the perfect choice. With its stationary
installation method, this machine is designed to stay in one place,
providing consistent and reliable performance day in and day out.
Key Features and Advantages (HSI vs VSI):
- Energy Savings: Reduces electricity consumption by 40–50%.
- Lower Consumable Costs: Saves 10–20% on wear part expenses.
- Larger Feed Size: Handles larger feed sizes and doubles the sand formation rate.
Additionally, for river pebble sand (~10mm), sand production
remains unaffected.
- Extended Wear Part Lifespan: The replacement cycle for throwing heads is extended by 5–7 times,
significantly improving continuous production cycles.
- High-Quality Shaping: Manufactured sand and crushed stone meet high standards for
aggregate quality.
- Ease of Use and Maintenance: Simple operation, easy maintenance, lower costs, and quick
replacement of wear parts.
- Portable Installation: Can be installed on a ship for mobility.
- High Cost-Performance Ratio: Low investment, quick returns, and excellent value.
Technical Parameters:
| Model | Max. feed size(mm) | Capacity(t/h) | Product size(mm) | Output(t/h) | Motor power(kw) | Dimensions(mm) |
| PW2006 | ≤70 | 40-50 | 0-5mm | 25-30 | 90 | 360x150x207 |
| 5-31.5mm | 10-15 |
| PW2008 | ≤80 | 60-80 | 0-5mm | 40-55 | 160 | 362x191x210 |
| 5-31.5mm | 15-20 |
| PW3008 | ≤90 | 90-110 | 0-5mm | 55-65 | 250 | 385x242x255 |
| 5-31.5mm | 20-30 |
| PW3308 | ≤100 | 120-140 | 0-5mm | 70-90 | 315 | 432x296x266 |
| 5-31.5mm | 30-40 |
| PW3608 | ≤100 | 160-200 | 0-5mm | 110-130 | 400 | 518x318x312 |
| 5-31.5mm | 30-40 |
| PW4010 | ≤100 | 300-400 | 0-5mm | 200-250 | 2x315(400) | 704x418x370 |
| 5-31.5mm | 60-80 |
Horizontal Shaft Impactor Crusher, Horizontal Rock Breaker, and
Rotary Horizontal Impact Crusher are all names for this product.
FAQ for customers to get a correct offer:
1.What type of stone needs to be crushed? Soft rock or hard rock?
2.What is the required output of the manufactured sand? 100t/h?
300t/h?
3.What is the maximum size of the stone particles? 70 cm? 50 cm?
4.How many size specifications are needed for the manufactured
sand?
Applications:
Widely applicable for crushing and artificial sand making of
materials such as river pebbles, basalt, granite, quartz, metallic
ores, and non-metallic ores.
Support and Services:
The Horizontal Shaft Impactor Crusher product comes with
comprehensive technical support and services that include:
- Installation and commissioning
- On-site training and operator support
- Maintenance and repair services
- Replacement parts and components
- 24/7 technical assistance and troubleshooting
Our team of experienced professionals is dedicated to providing our
customers with the highest quality support and service throughout
the entire lifecycle of their equipment.
Packing and Shipping:
Product Packaging:
- The Horizontal Shaft Impactor Crusher will be securely packed in a
wooden crate.
- The crate will be properly sealed and labeled with product
information and handling instructions.
- Additional padding and cushioning will be used inside the crate to
ensure the product arrives in perfect condition.
Shipping:
- The product will be shipped via truck or freight delivery.
- Delivery times may vary depending on the destination.
- Customers will receive a tracking number and updates on the status
of their shipment.
- Please inspect the product upon arrival and report any damage to
the shipping company and our customer service team.
