PWS200 Wet Technology M Sand Making Machine Manufactured Sand Plant
The wet technology for M sand production is known for producing
high-quality sand that is free from impurities and has a consistent
particle size distribution. This process ensures that the M sand
meets the required specifications for use in construction and other
applications.
In the production of Manufactured Sand (M sand) using wet
technology, the process typically involves the following steps:
1.Quarrying: The process begins with the extraction of suitable raw materials
from quarries. These raw materials usually include hard rocks such
as granite, basalt, or limestone.
2.Primary Crushing: The extracted raw materials are then crushed in a primary crusher
to reduce the size of the rocks into smaller pieces.
3.Secondary Crushing: The crushed material from the primary crusher is further crushed
in a secondary crusher to achieve the desired size and shape of the
M sand particles.
4.Screening: After crushing, the material is screened to separate out the
required particle sizes. This helps in ensuring that the final M
sand product meets the specified gradation requirements.
5.Washing: In the wet process of M sand production, washing is a crucial
step. The crushed and screened material is washed to remove
impurities such as dust, clay, and silt. This washing process helps
in producing clean and high-quality M sand.
6.Classifying: The washed material is then classified based on particle size
using a classifier. This step helps in ensuring that the M sand
meets the required particle size distribution.
7.Dewatering: After washing and classifying, the M sand is dewatered to remove
excess moisture. Dewatering is essential to maintain the proper
moisture content in the final product.
8.Storage and Distribution: The final M sand product is stored in silos or stockpiles before
distribution to customers. Proper storage is important to prevent
contamination and maintain the quality of the M sand.
PWS200 M Sand Making Machine Performance Characteristics:
- Low energy consumption
- Low wear
- High sand production rate
- Excellent shaping effect
- Controllable grading (sand making machine controls fineness
modulus).
Technical Parameter:
| Model | Max. feeding particle size(mm) | Capacity(t/h) | Particle size(mm) | Output(t/h) | Total power |
| PWS-200 | ≤60 | 300-400 | 0-5 | 160-200 | 790 |
PS: The above data is based on materials with crushing hardness
(Mohs hardness of 3-7.5). Depending on the nature of materials with
different hardness, feed grading, moisture content, clay content,
bulk density, and characteristics may vary. All data is for
reference only.

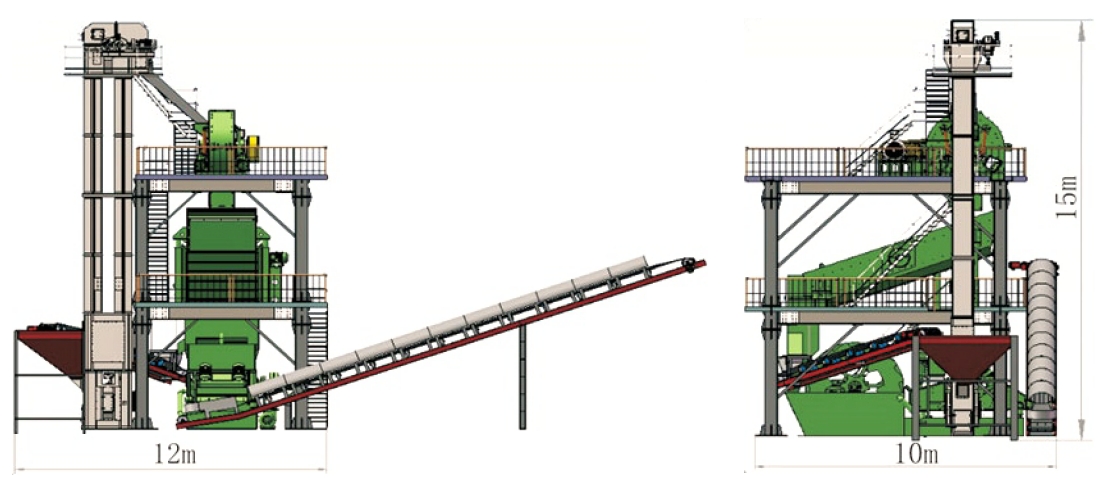

PW Series Equipment Layout Space-WET Technology:

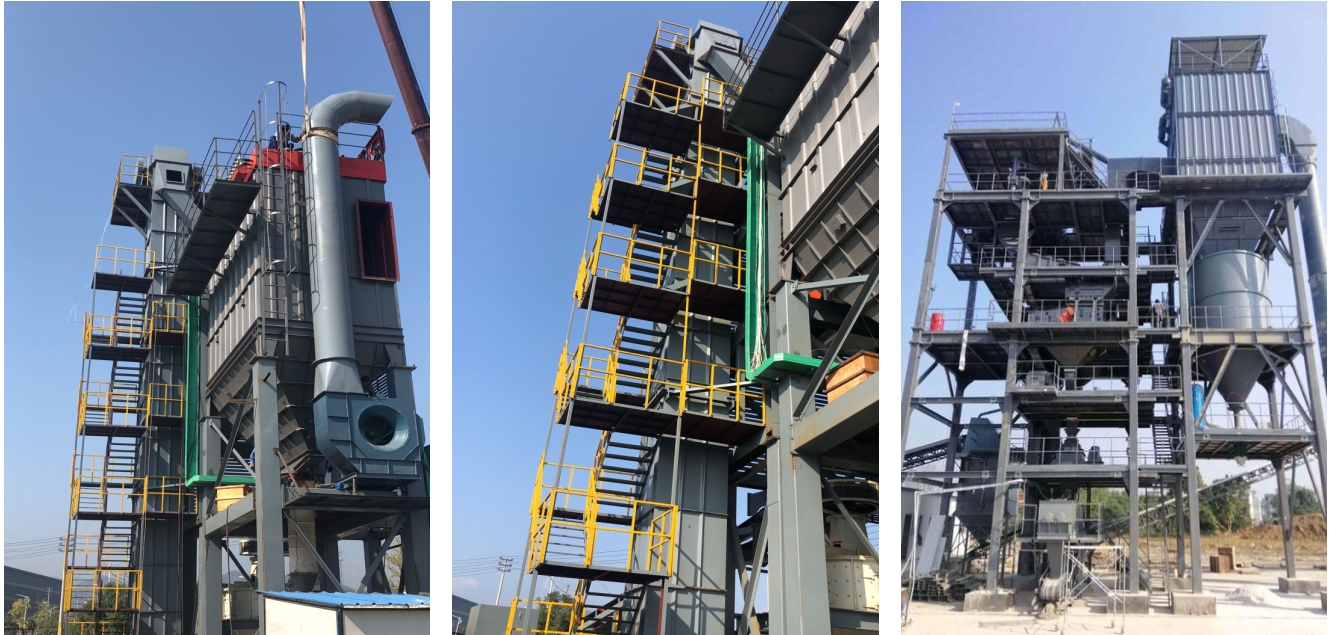

On-site Installation View:
